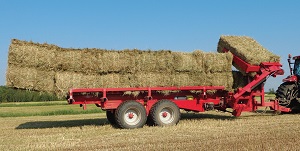

Self Loading Bale Carrier TSR3450
Product Description
Call for pricing!
Ideal for baleage, dry hay and straw
One man/one tractor operation
Heavy duty piece of equipement
Proven quality, perfomance and power
Square bale 3’ x 3’ (80cm x 90cm) loading capacity 19
Square bale 4’ x 3’ (120cm x 90cm) loading capacity 14
Square bale 4’ x 4’ (120cm x 120cm) loading capacity 7
Width (excluding loading arm) 8' 5" (2.6 m)
Width (including loading arm) 9' 8" (3 m)
Bed height 4' 4" (1.4 m)
Height (excluding loading arm) 7' 9" (2.4 m)
Height (including loading arm) 9' 8 " (3 m)
Length 37' 6" (11.5 m)
Weight 6200 kg (13650 lbs)
Weight on tow bar (empty load) 1290 kg (2844 lbs)
Tires 550/45-22.5
Loading capacity (including bale carrier weight) 18144 kg (40000 lbs)
Dumping angle 35
